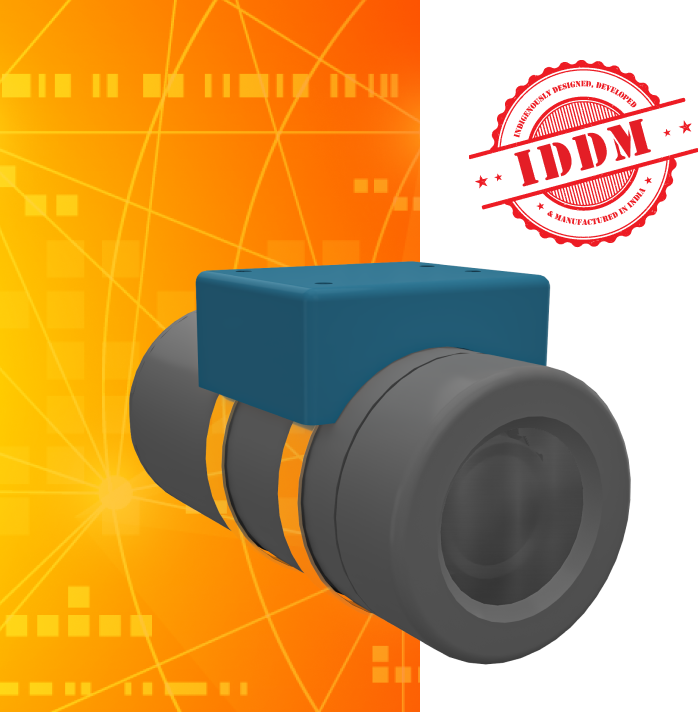

Underwater Camera
Get Ultra-sharp Vision and Unmatched Underwater Visibility
The underwater camera is an indigenous waterproof vision system designed for submerged operations in harsh environments.
Watch Video
1.45 Mins
The Underwater Camera is made for capturing high-definition images and videos during submerged operations. The camera’s high strength alloy housing allows safe camera working at depths of up to 2000m. Its fully motorized lens with zoom, focus, and iris with integrated autonomous focusing feature works in tandem with the sapphire glass window to offer crisp and clear underwater images. The camera has high resolution of FHD 1080p to 4K Ultra HD to capture videos at frame rates up to 60 fps.
Features
The underwater camera is equipped with features optimized for submerged imaging:
High-Definition Picture Quality
Offers excellent pictures and videos
H.264 Dual Stream Compression
Quick data transfer without compromising quality
Viewing Angle
Covers a large area for greater underwater visibility
High Strength Alloy Housing
Withstands high pressures of deeper depths
Waterproof Camera
Operates at depths of up to 2000m
4X Optical Zoom
Take clear, zoomed images without losing quality
Key Features
01
High-Definition Picture Quality
02
H.264 Dual Stream Compression
03
Viewing Angle
04
High Strength Alloy Housing
05
Waterproof Camera
06
4X Optical Zoom
01
High-Definition Picture Quality
Offers excellent pictures and videos
02
H.264 Dual Stream Compression
Quick data transfer without compromising quality.
03
Viewing Angle
Covers a large area for greater underwater visibility
04
High Strength Alloy Housing
Withstands high pressures of deeper depths
05
Waterproof Camera
Operates at depths of up to 2000m
06
4X Optical Zoom
Take clear, zoomed images without losing quality
Offers excellent pictures and videos
Quick data transfer without compromising quality.
Covers a large area for greater underwater visibility
Withstands high pressures of deeper depths
Operates at depths of up to 2000m
Take clear, zoomed images without losing quality

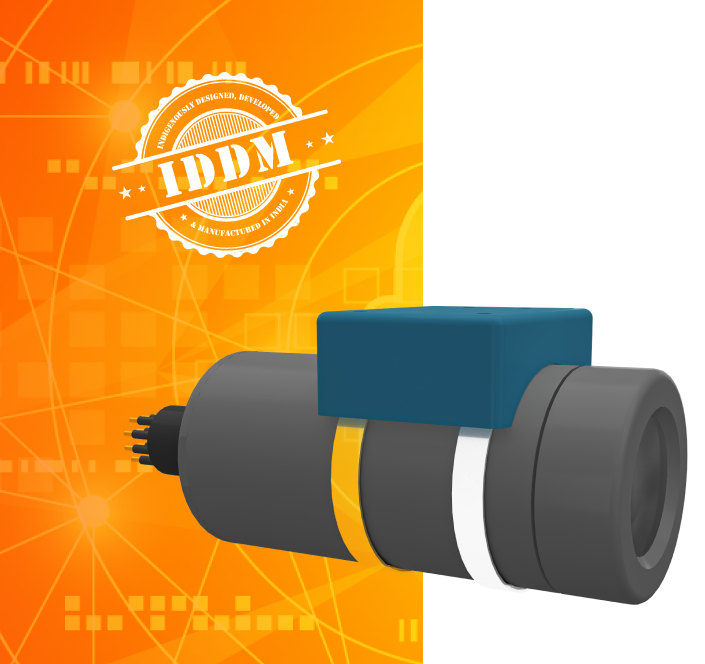

Hardware
Sapphire Window
Sensor
Sapphire Window
Sapphire Window
Sapphire glass provides high scratch resistance and optical clarity making it ideal for camera applications in rugged environment.
Sensor
Sensor
The 1/2.8f CMOS sensor along with its lens offers up to 4X optical zoom resulting in high quality images and video streams.
Gallery
Previous
Next
Specifications
The underwater camera is equipped with features optimized for submerged imaging:
Optical
Sensor
Lens
Angle of View
Lowlight CMOS
9 – 36mm, f1.8 – 3.4
Horizontal: 34°-8° in water
Vertical: 21°-5° in water
Diagonal: 40°-9.2° in water
More Specifications
Environmental Qualification
Depth Rating
Storage Temperature
Operating Temperature
Operating Humidity
Shock
Vibration
Up to 2000m
-40°C to +60°C
-4°C to +60°C
10-85% relative humidity (non-condensing)
3 Axis (operating), 30g peak, ms half-sine pulse
6g, 20 to 150Hz
Mechanical data
Dimensions
Weight in Air
Weight in Water
Connector
67mm (ø) x 170mm (l) (excluding connector)
800 g
400 g
3rd Party
Video
Zoom
Compression
Resolution
Frame Rate
Streaming
Housing Material
Window
4x optical
H.264/H.265 video compression
FHD 1080p to 4K Ultra HD
Up to 60 fps
Ethernet
High strength alloy
Sapphire
Electrical data
Power
Video Output
+9V to +36V DC
H.264/H.265 video compression
See Less
Optical
Sensor Lowlight CMOS
Lens 9 – 36mm f1.8 – 3.4
Angle of View Horizontal: 34°-8° in water Vertical: 21°-5° in water Diagonal: 40°-9.2° in water
Environmental Qualification
Depth Rating Up to 2000m
Storage Temperature -40°C to +60°C
Operating Temperature -4°C to +60°C
Operating Humidity 10-85% relative humidity (non-condensing)
Shock 3 Axis (operating), 30g peak, ms half-sine pulse
Vibration 6g, 20 to 150Hz
More Specifications
Mechanical data
Dimensions 67mm (ø) x 170mm (l) (excluding connector)
Weight in Air 800 g
Weight in Water 400 g
Connector 3rd Party
Video
Zoom 4x optical
Compression H.264/H.265 video compression
Resolution FHD 1080p to 4K Ultra HD
Frame Rate Up to 60 fps
Streaming Ethernet
Housing Material High strength alloy.
Window Sapphire
