Electro-Optical Infrared Gimbal
Uncover Hidden Details from Distance
The EO/IR Gimbal is a drone-based imaging device with thermal and IR imaging capabilities.
![](https://bitmapper.com/wp-content/uploads/2023/10/electro_optical_infrared_gimbal_first_section.png)
![](https://bitmapper.com/wp-content/uploads/2023/10/electro_optical_infrared_gimbal_second_section.png)

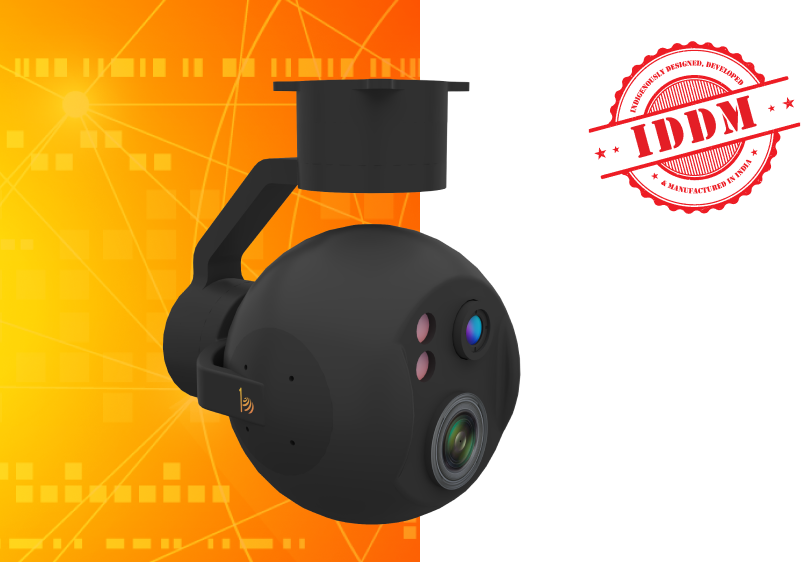

The EO/IR Gimbal by Bit Mapper is a robust camera designed to deliver seamless aerial imaging with exceptional detail. Perfect for inspection, surveillance, search, and rescue operations, this camera offers thermal and IR imaging capabilities for enhanced vision and the ability to uncover hidden details.
Up to 30x optical and 12x digital zoom enables smooth video streaming and high-quality photography even from a distance. The EO/IR Gimbal is the ultimate imaging device for all drone-based applications, operating flawlessly even in low-light conditions.
Up to 30x optical and 12x digital zoom enables smooth video streaming and high-quality photography even from a distance. The EO/IR Gimbal is the ultimate imaging device for all drone-based applications, operating flawlessly even in low-light conditions.
![](https://bitmapper.com/wp-content/uploads/2023/10/electro_optical_infrared_gimbal_second_section.png)
Features
![](https://bitmapper.com/wp-content/uploads/2023/07/Ruggedized.png)
Ruggedized Design
For Operating in Harsh Conditions
![](https://bitmapper.com/wp-content/uploads/2023/07/3-axis.png)
3-Axis Stabilisation
Clear Streaming and Photography in Motion
![](https://bitmapper.com/wp-content/uploads/2023/07/laser-rangefinder.png)
Eye-Safe Laser Rangefinder
For Precise Measurements at Distance
![](https://bitmapper.com/wp-content/uploads/2023/07/auto-object.png)
Auto-Object Tracking
With Follow-on Feature
![](https://bitmapper.com/wp-content/uploads/2023/07/Protection.png)
IP65 Ingress Protection
For Indoor and Outdoor Use
![](https://bitmapper.com/wp-content/uploads/2023/07/360-rotation.png)
360° Yaw Rotation
Minimises Blind Spots for Complete Vision
![](https://bitmapper.com/wp-content/uploads/2023/07/Video.png)
Rapid Video Output
Features Ethernet for Fast Streaming
![](https://bitmapper.com/wp-content/uploads/2023/07/Thermal-imaging.png)
High-Detail Thermal Imaging
336 x 256 Pixel Resolution
Key Features
01
Ruggedized Design
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
02
3-Axis Stabilisation
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
03
Eye-Safe Laser Rangefinder
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
04
Auto-Object Tracking
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
05
IP65 Ingress Protection
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
06
360° Yaw Rotation
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
07
Rapid Video Output
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
08
High-Detail Thermal Imaging
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
01
Ruggedized Design
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-Ruggedized-Design.png)
For Operating in Harsh Conditions
02
3-Axis Stabilisation
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-3-Axis-Stabilisation.png)
Clear Streaming and Photography in Motion
03
Eye-Safe Laser Rangefinder
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
![](https://bitmapper.com/wp-content/uploads/2023/12/Laser.png)
For Precise Measurements at Distance
04
Auto-Object Tracking
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
![](https://bitmapper.com/wp-content/uploads/2024/01/Target-based-Image-Enhancement.png)
With Follow-on Feature
05
IP65 Ingress Protection
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-IP65-Ingress-Protection.png)
For Indoor and Outdoor Use
06
360° Yaw Rotation
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-360-Yaw-Rotation.png)
Minimises Blind Spots for Complete Vision
07
Rapid Video Output
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-Rapid-Video-Output.png)
Features Ethernet for Fast Streaming
08
High-Detail Thermal Imaging
![](https://bitmapper.com/wp-content/uploads/2023/11/right_arrow_long_stem_bitmapper_products.png)
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-High-Detail-Thermal-Imaging.png)
336 x 256 Pixel Resolution
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-Ruggedized-Design.png)
For Operating in Harsh Conditions
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-3-Axis-Stabilisation.png)
Clear Streaming and Photography in Motion
![](https://bitmapper.com/wp-content/uploads/2023/12/Laser.png)
For Precise Measurements at Distance
![](https://bitmapper.com/wp-content/uploads/2024/01/Target-based-Image-Enhancement.png)
With Follow-on Feature
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-IP65-Ingress-Protection.png)
For Indoor and Outdoor Use
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-360-Yaw-Rotation.png)
Minimises Blind Spots for Complete Vision
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-Rapid-Video-Output.png)
Features Ethernet for Fast Streaming
![](https://bitmapper.com/wp-content/uploads/2024/01/electro-optical-infrared-gimbal-High-Detail-Thermal-Imaging.png)
336 x 256 Pixel Resolution
![](https://bitmapper.com/wp-content/uploads/2023/10/electro_optical_infrared_gimbal_fourth_section.png)

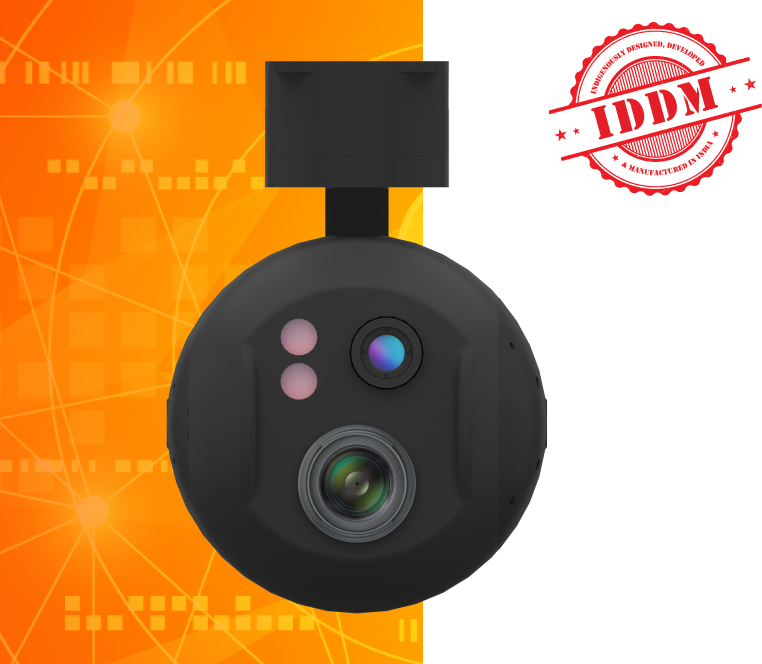

Hardware
Daylight Camera
Thermal Sensor ![](https://bitmapper.com/wp-content/uploads/2022/12/MicrosoftTeams-image.png)
![](https://bitmapper.com/wp-content/uploads/2022/12/MicrosoftTeams-image.png)
Laser Rangefinder
Daylight Camera
Daylight Camera
The gimbal’s camera features a 4MP CMOS Sensor to offer Full HD video streaming at 30 fps and 30x optical zoom. The camera’s 3-axis stabilization design allows imaging even while in motion.
Thermal Sensor ![](https://bitmapper.com/wp-content/uploads/2022/12/MicrosoftTeams-image.png)
![](https://bitmapper.com/wp-content/uploads/2022/12/MicrosoftTeams-image.png)
Thermal Sensor
A VOx microbolometer offers powerful thermal imaging performance for visibility in cloudy, smoke-filled, and low-light environments. The sensor allows 640×480 pixels resolution for thermal imaging.
Laser Rangefinder
Laser Rangefinder
The gimbal makes measurements easy with the eye-safe laser rangefinder on board the device. The rangefinder can measure distances up to 1500m with up to 1m accuracy.
Gallery
Previous
Next
Use Cases
- Imaging of landscapes, land survey, and topography.
- Day/night surveillance of high-security areas.
- Video-based operations in far-reaching places for improved location of rescue targets.
![](https://bitmapper.com/wp-content/uploads/2023/07/Electro-Optical-cam.png)
Global Dimensions
![](https://bitmapper.com/wp-content/uploads/2023/07/Global-Dimensions.png)
Specifications
![](https://bitmapper.com/wp-content/uploads/2023/07/Daylight.png)
Daylight Camera
Sensor 1/1.8” 4MP CMOS Sensor
Focal length 30X optical zoom, 6.5 mm to 162.5 mm
Video Output 720p @30fps Ethernet
Digital Zoom 12X
![](https://bitmapper.com/wp-content/uploads/2023/07/Pan-tilt.png)
Pan/Tilt Mechanical
Pan Angle & Speed 360° Continuous Rotation, 0.1°/s to 100°/s
Tilt Angle & Speed +45° to -120°, 0.1°/s to 100°/s
Proportional Pan/Tilt Auto adjusts pan/tilt speed based on zoom level
Vibration Angle Roll ± 0.02°
Weight 5 Kg (Approx)
![](https://bitmapper.com/wp-content/uploads/2023/07/system.png)
System
Computing Platform NVIDIA Xavier NX
AI performance 6 TFLOPS
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel, Arm®v8.2 64-bit CPU, 6MB L2 + 4MB L3
Memory 8 GB 128-bit LPDDR4x DRAM
Storage Flash eMMC 16GB SSD 1 TB
![](https://bitmapper.com/wp-content/uploads/2023/07/Thermal-camera.png)
Thermal Camera
Thermal Imager Uncooled VOx Microbolometer
Spectral Band 7.5 - 13.5 μm
Thermal Resolution 640x480
Lens 19mm
Pixel Size 17 μm
More Specifications
![](https://bitmapper.com/wp-content/uploads/2023/07/Daylight.png)
Daylight Camera
Sensor
1/1.8” 4MP CMOS Sensor
Focal length
30X optical zoom, 6.5 mm to 162.5 mm
Video Output
720p @30fps Ethernet
Digital Zoom
12X
![](https://bitmapper.com/wp-content/uploads/2023/07/Pan-tilt.png)
Pan/Tilt Mechanical
Pan Angle & Speed
360° Continuous Rotation, 0.1°/s to 100°/s
Tilt Angle & Speed
+45° to -120°, 0.1°/s to 100°/s
Proportional Pan/Tilt
Auto adjusts pan/tilt speed based on zoom level
Vibration Angle
Roll ± 0.02°
Weight
5 Kg (Approx)
![](https://bitmapper.com/wp-content/uploads/2023/07/Thermal-camera.png)
Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Spectral Band
7.5 - 13.5 μm
Thermal Resolution
640x480
Lens
19mm
Pixel Size
17 μm
More Specifications
![](https://bitmapper.com/wp-content/uploads/2023/07/system.png)
System
Computing Platform
NVIDIA Xavier NX
AI performance
6 TFLOPS
GPU
384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU
6-core NVIDIA Carmel, Arm®v8.2 64-bit CPU, 6MB L2 + 4MB L3
Memory
8 GB 128-bit LPDDR4x DRAM
Storage
Flash eMMC 16GB SSD 1 TB
![](https://bitmapper.com/wp-content/uploads/2023/07/Optical.png)
Optical
Sensor
Lens
Angle of View
CMOS
9 – 36mm f1.8 – 3.4
140° HOV
![](https://bitmapper.com/wp-content/uploads/2023/07/enviromental.png)
Environmental Qualification
Storage Temperature
Operating Temperature
Operating Humidity
-40°C to +60°C
-30°C to +60°C
80% relative
![](https://bitmapper.com/wp-content/uploads/2023/07/Mechanical.png)
Mechanical data
Dimensions
Weight
Mil Qualification
IP Qualification
Connector
70 mm x 90 mm x 30 mm
200g
MIL-STD 810
IP67
USB Type C
![](https://bitmapper.com/wp-content/uploads/2022/11/Sensor-Icon.png)
Sensor
Sensor -IMX334
Sensor Type - 1/1.18” CMOS
Resolution - 3840 x 2160
Megapixels - 8.29 MP
Pixel Size - 2µm x 2µm
Pixel Formats Supported - RAW10, RAW12, RGB/span>
Shutter Type - Rolling Shutter
Frame Rate - 30fps, 60fps
![](https://bitmapper.com/wp-content/uploads/2022/11/System.png)
System
Storage - 16GB eMMCv 5.1,
Processor - NVIDIA Carmel ARM ®v8.2”, 64- bit CPU, 6MB L2 + 4MB L3
GPU- NVIDIA Volta, GPU with 48 Tensor Cores
More Specifications
![](https://bitmapper.com/wp-content/uploads/2023/07/audio-video.png)
Audio & Video
Audio Input
Compression
Resolution
Frame Rate
Video Output
1 mic
H.264/H.265 video compression
Full HD 1080p
1080p@60, 1080p@30, 720p@60, 720p@30
2-inch Full HD LCD Screen
![](https://bitmapper.com/wp-content/uploads/2023/07/Kaser-range-finder.png)
Laser range finder (LRF)
Detection Range
10m -1500m
Resolution Ratio
0.1 m
Laser Wavelength
905nm (class 1 safer laser)
Divergence Angle
3mrad
Baud rate
9600/115200bps
Accuracy
Better than 1m
See Less
![](https://bitmapper.com/wp-content/uploads/2023/07/range-performance.png)
Range Performance
Detection
1370 m
Recognition
340 m
Identification
170 m
![](https://bitmapper.com/wp-content/uploads/2023/07/Kaser-range-finder.png)
Laser range finder (LRF)
Divergence Angle
3mrad
Baud rate
9600/115200bps
Accuracy
Better than 1m
![](https://bitmapper.com/wp-content/uploads/2023/07/range-performance.png)
Range Performance
Detection
Recognition
Identification
1370 m
340 m
170 m
![](https://bitmapper.com/wp-content/uploads/2023/07/Kaser-range-finder.png)
Laser range finder (LRF)
Detection Range 10m -1500m
Resolution Ratio 0.1 m
Laser Wavelength 905nm (class 1 safer laser)
Divergence Angle 3mrad
Baud rate 9600/115200bps
Accuracy Better than 1m
![](https://bitmapper.com/wp-content/uploads/2023/07/range-performance.png)
